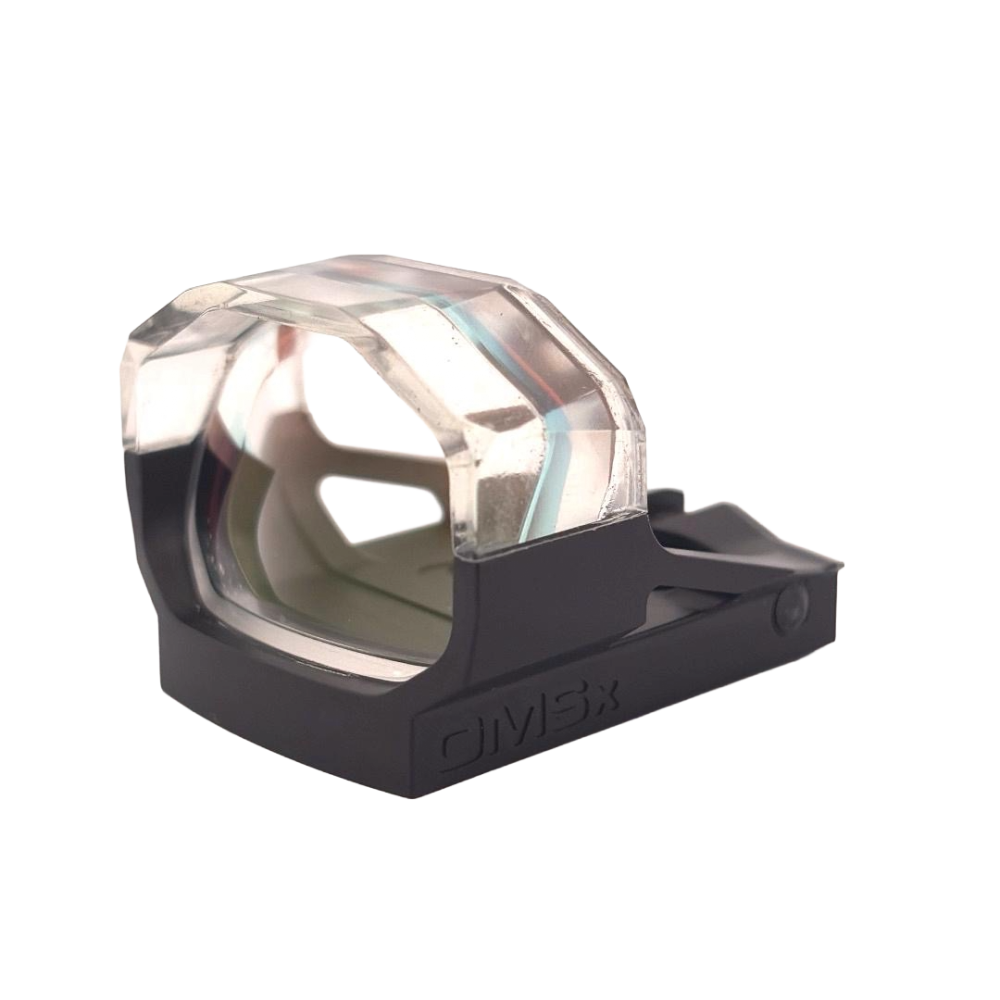

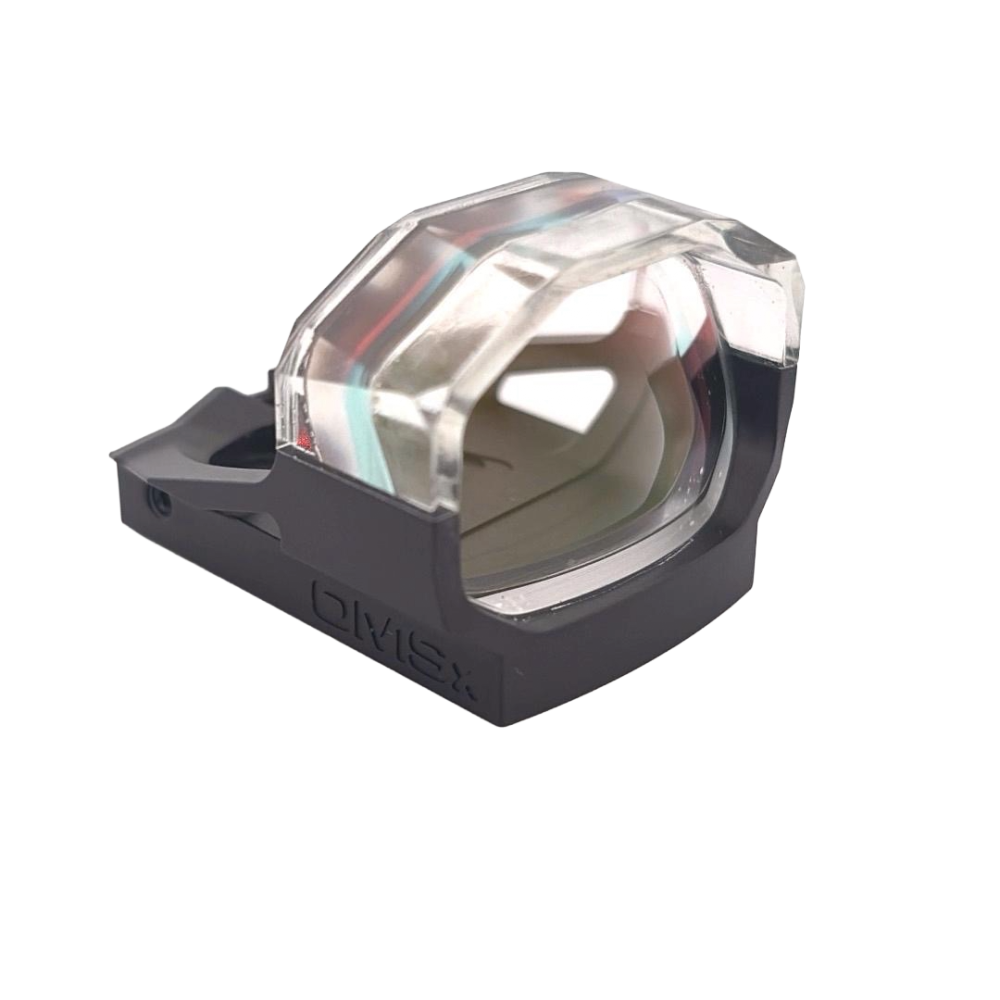

Shield OMSx [Glass]

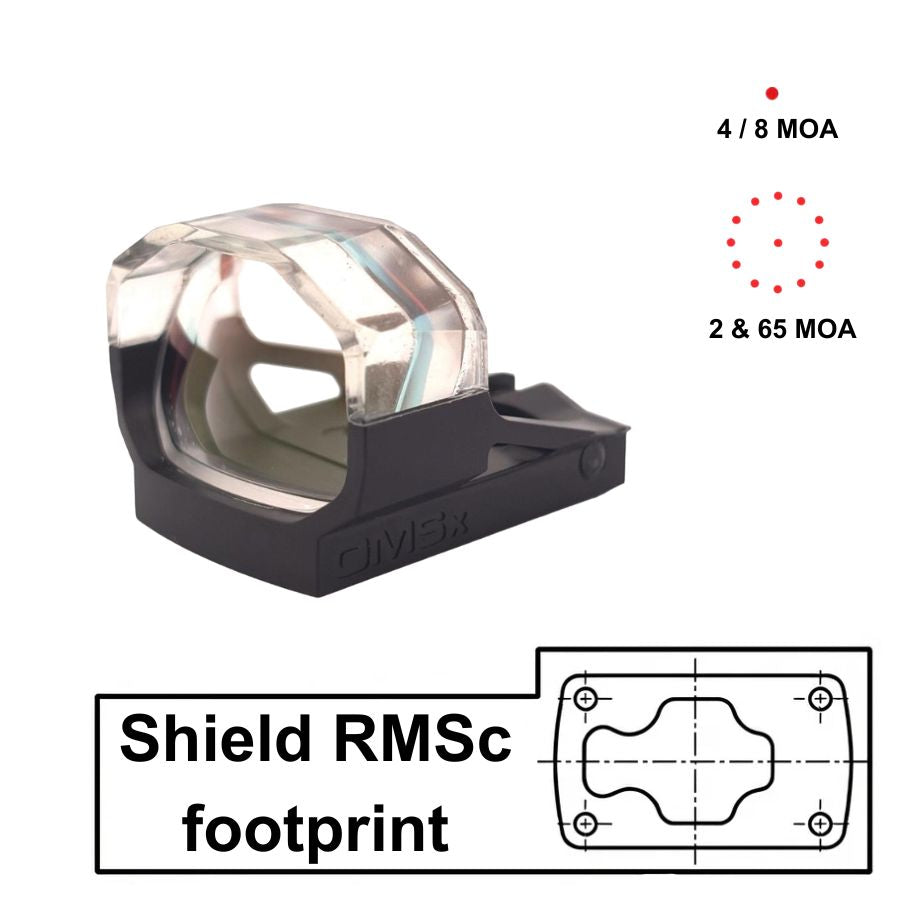

This red dot uses the Shield RMSc footprint standard.

Shield OMSx is a next generation micro red dot sight engineered for high level competitive shooting.

Compared with Shield's Mini-Sight range, the OMSx has an 80% larger lens area, which significantly expands the field of view while keeping a true to colour, distortion free optical image. The enlarged viewing window helps with dot tracking, target transitions and situational awareness during high speed stages.

It uses Shield's translucent roof architecture, first introduced on the OMSsc, so the sight picture is almost free of visual obstruction.

Key advantages

• Translucent roof architecture for enhanced brightness and field of view
• Wide viewing window inspired by the RMSx competition optic
• Transparent acrylic hood for an unobstructed view
• Octagon-shaped, crystal-clear glass lens with no filters
• Shield's patented mechanism enables co-witnessing with standard iron sights
• No click adjustment, for a more precise zero
• Automatic brightness adjustment, always on and ready
• IP67 rated for dust and water resistance

Specification

• Light source: red LED, no laser, eye-safe, no radioactive materials
• Reticle options: 4 MOA dot, 8 MOA dot, 65 MOA ring with 2 MOA dot
• Lens: octagon-shaped glass lens, hard anti-reflective, colour-free coating
• Window size: 21 x 28 mm
• Battery: CR2032, fitted underneath
• Battery life: 20,000 hours in average daylight
• Brightness: automatic, from night vision compatible to bright daylight
• Housing material: anodized aluminium 6082 T6 with acrylic roof
• Colour: matte black with a transparent roof
• Dimensions (L x W x H): 40.8 x 34 x 27.3 mm
• Weight: 27.6 g without battery
• Water resistance: IP67, immersion to 1 m for 30 minutes
